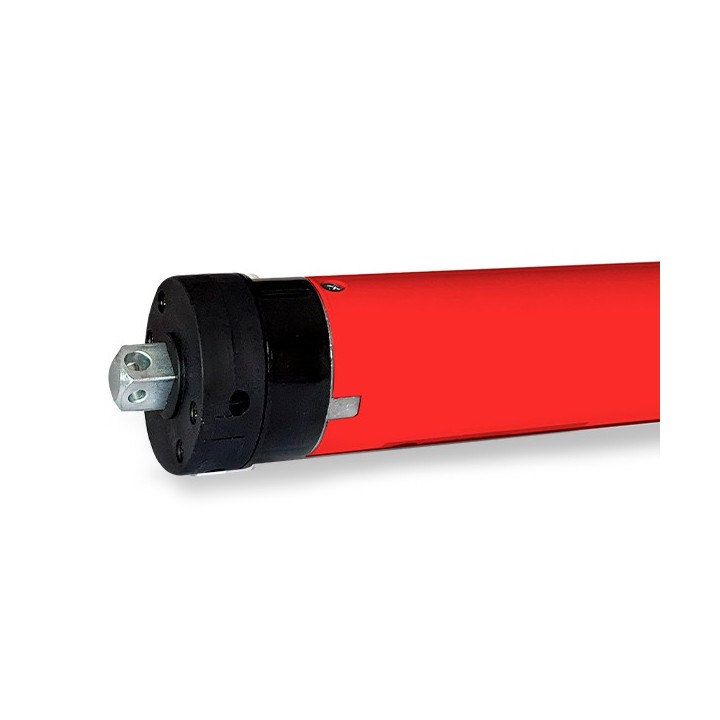

Sky bidi 100/12 Ø59 mm

Obstacle detection

Obstacle detection
*(45 mm only)

Electronic limit switch

Electronic
limit switch

Bidirectional

Bidirectional

Radio receiver

Radio receiver

Rated torque
100 Nm
Speed
12 rpm
Power supply
230 V 50 Hz
Rated power
345 W
Current
1.54 A
Operating time
4 min
Maximum number of rotations
∞
Protection rating
IP44
Length
722 mm
Maximum supported weight
150 kg
Control
Radio control
Limit switch adjustment
By remote control

Enlazar primer emisor persiana
Cambio de dirección persiana
Programar final de carrera inferior persiana
Programar final de carrera de arriba persiana
Programar final de carrera superior e inferior automático
Añadir o quitar posición favorita persiana
Modificar final de carrera de bajada persiana
Modificar el final de carrera superior persiana
Activar o desactivar movimiento por impulsos persiana
Enlazar o eliminar un emisor adicional persiana
Eliminar todos los emisores persiana
Eliminar todos los finales de carrera persiana
Activar o desactivar parada por obstáculo y función rebote persiana
Cambio de modo parada por obstáculo persiana
Cambio de la sensibilidad de la parada por obstáculo persiana
Función repetidor de señal de radio persiana

Automate your shutters, curtains or awnings with SKY BIDI!
Bidirectional radio control and electronic limit switches.

Eurotronic SKY BIDI motor
SKY BIDI obstacle detection

OBSTACLE DETECTION

The 20, 30 and 50 NmSKY BIDI models include:

  • Automatic obstacle detection, protecting both the motor and the installation.
  • Wired switch output, providing greater control flexibility.
More powerful SKY BIDI

EXTRA POWER

The 80, 100 and 120 Nm versions, designed for larger and heavier awnings, include:

  • Configurable pressure-closing function, ideal for cassette awnings that require firm closing adjustment.
  • Quiet and precise operation, even with large awnings.
SKY BIDI suitable for 35, 45 and 59 mm tubes

Suitable for tubes of:
Ø35 mm
Ø45 mm
Ø59 mm
