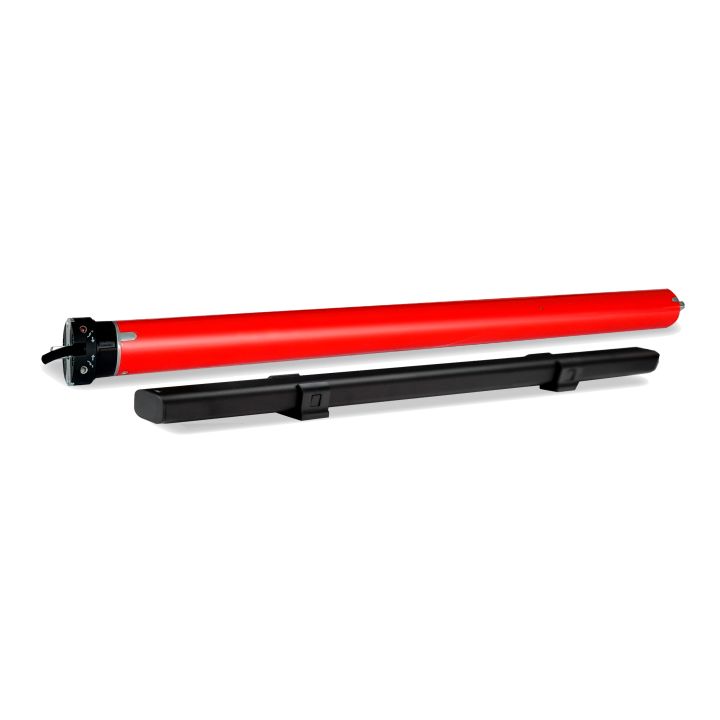

Battery bidi 50 Nm + battery with bidirectional receiver

Enjoy the freedom of a smart home with the Battery BIDI motor. Its integrated battery provides an impressive operating time of up to 12 months, enabling a clean, cable-free installation. Control your curtains or roller shutters remotely with its bidirectional radio receiver. The quality and convenience you expect, now with an exceptionally easy and hassle-free installation.

Built-in battery

Built-in battery

Electronic limit switch

Electronic
limit switch

Bidirectional

Bidirectional

Radio receiver

Radio receiver

Solar-panel compatible

Solar-panel compatible

Rated torque
50 Nm
Speed
12 rpm
Power supply
12 V DC
Rated power
142 W
Current
11.8 A
Operating time
6 min
Maximum number of rotations
20
Protection rating
IP44
Length
674 mm
Maximum supported weight
80 kg
Control
Push button / reversing switch
Limit switch adjustment
Manual operation by crank rod
Battery
Yes

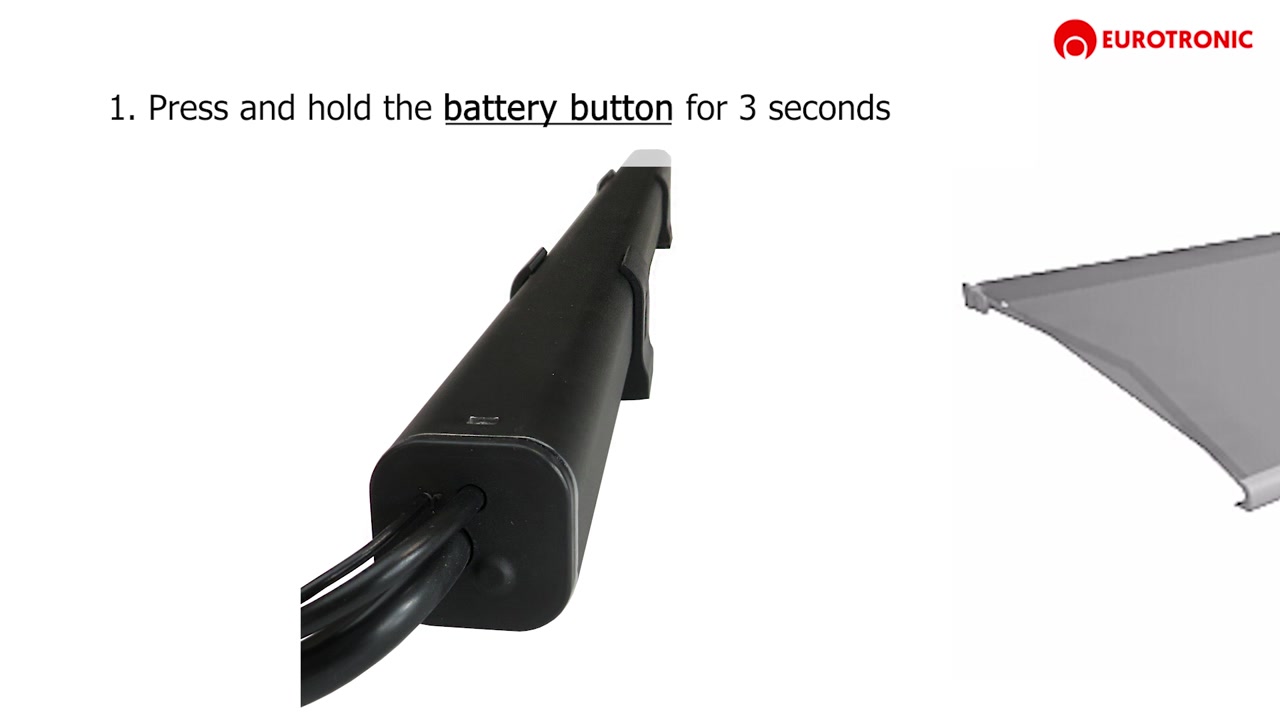

Link first transmitter from the battery

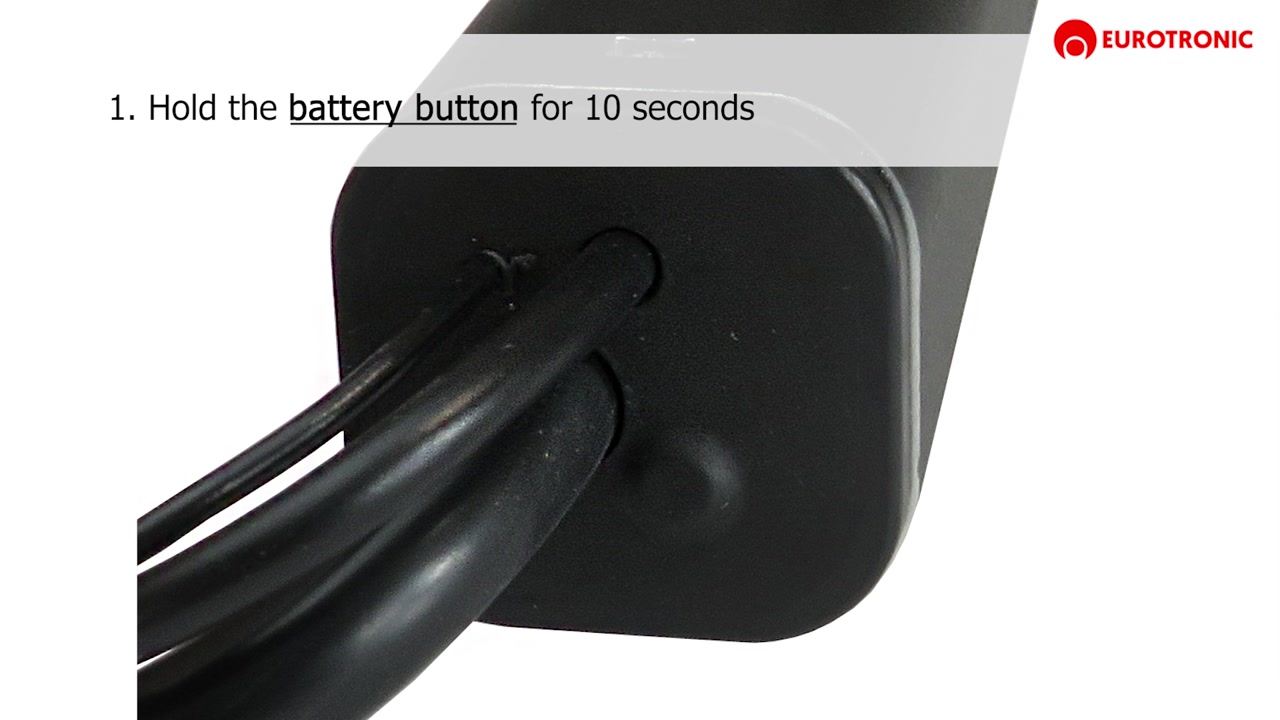

Change direction from the battery

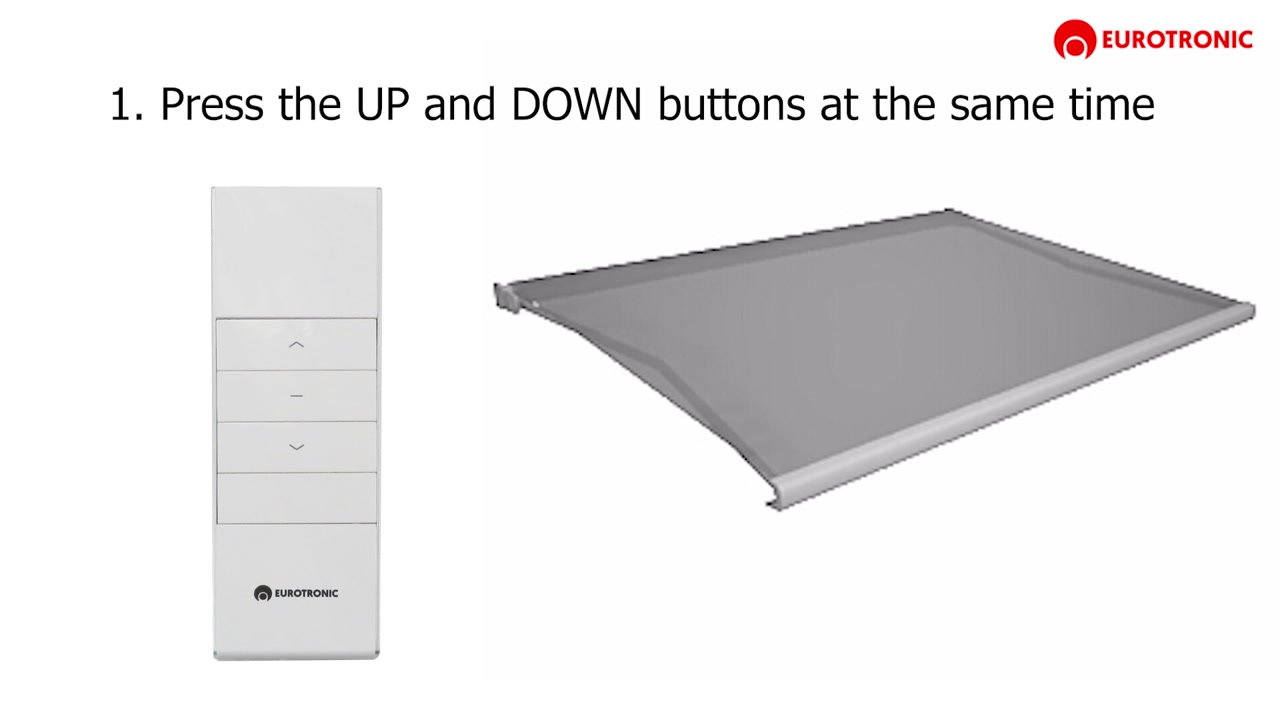

Change direction awning

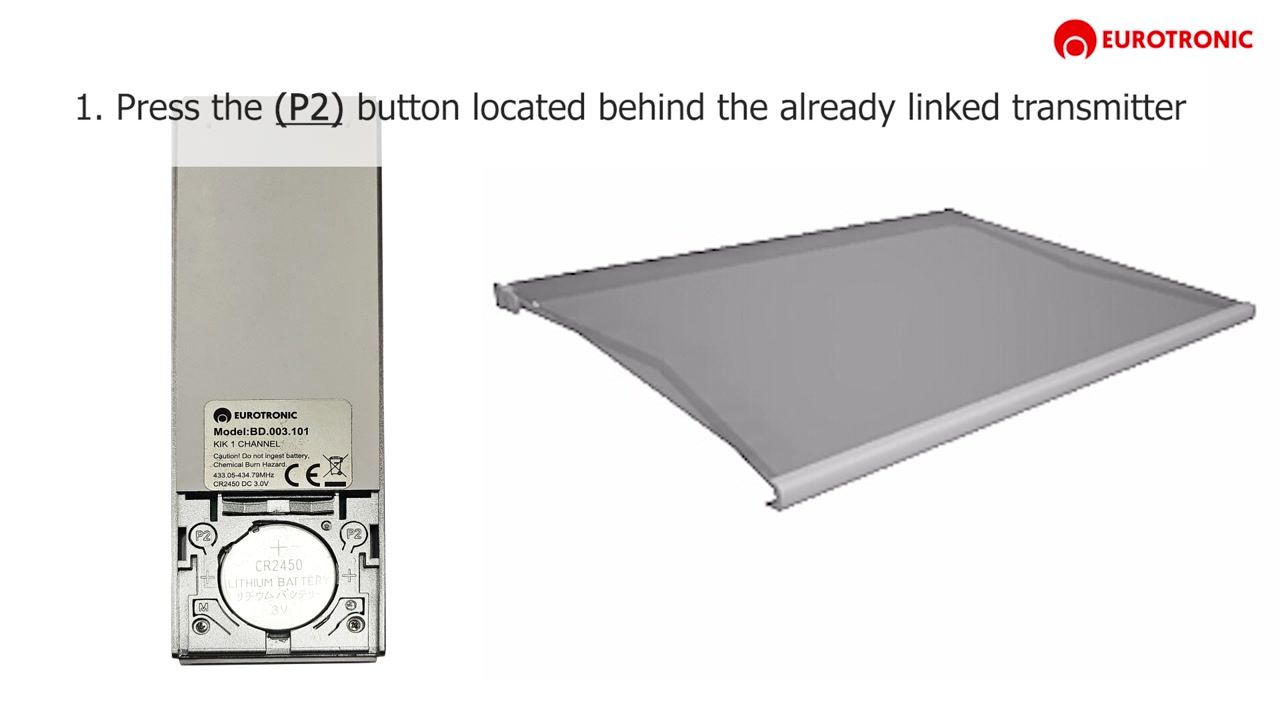

Link or remove an additional transmitter awning

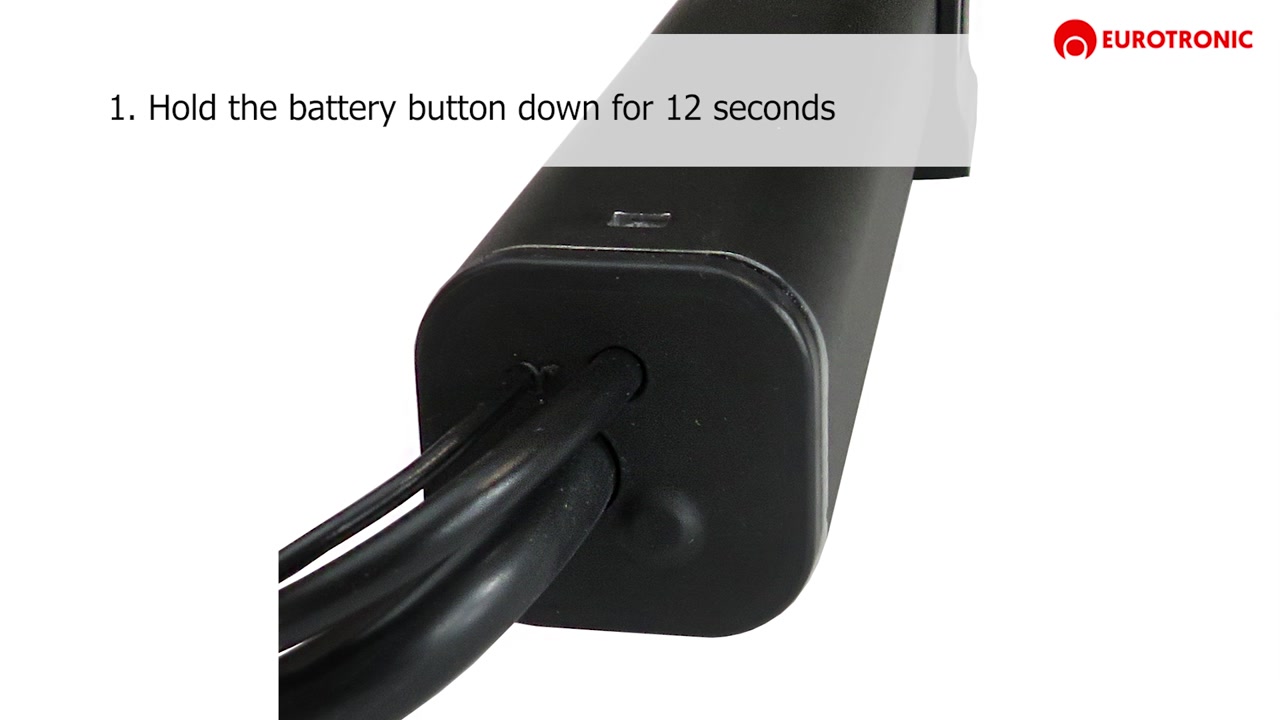

Restore to factory mode from the battery

Forget the cables
with Battery BIDI!

No-building-work installation,
up to 12 months of battery life
and bidirectional radio control.

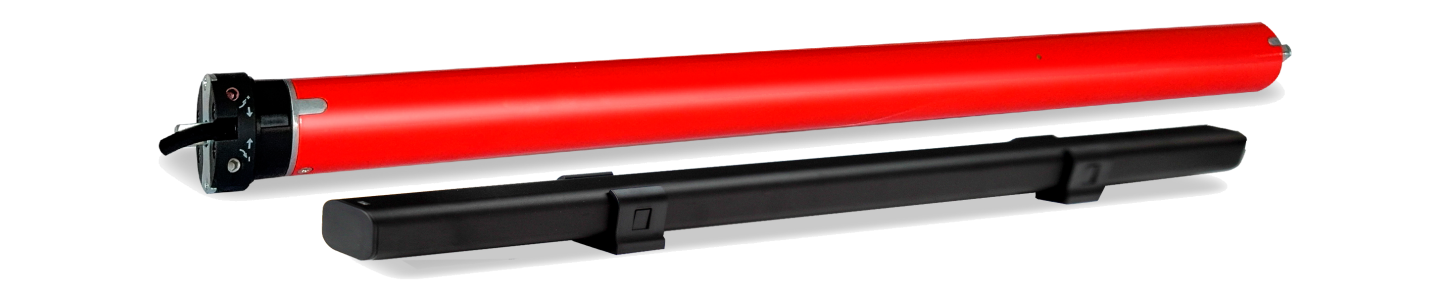

Eurotronic Battery BIDI motor
Long-lasting Battery BIDI battery

LONG-LASTING BATTERY

Enjoy a truly straightforward installation with no building work or cables thanks to the Battery BIDI motor with integrated battery.

This innovative feature removes the need to run cables, allowing curtains to be motorised in existing installations regardless of the availability of power sockets.

Battery life is also remarkable: with daily use, the motor can operate autonomously for up to 12 months. That means fewer recharges and greater everyday convenience.

Maximum Battery BIDI reliability

MAXIMUM RELIABILITY

Battery BIDI: high-end technology backed by the Eurotronic guarantee.

The Battery BIDI motor embodies the quality and reliability that distinguish the entire Eurotronic tubular motor range. It includes a radio receiver with a bidirectional protocol.

Electronic limit-switch adjustment makes setting the motor travel quick and easy, directly from the remote control, without having to physically access the motor head. This simplifies installation and speeds up commissioning and maintenance.

Battery BIDI solution for every need

A SOLUTION FOR EVERY NEED

The Battery BIDI motor adapts to a wide variety of curtains and shutters thanks to three available torque ratings: from the 1.2 Nm model, ideal for lightweight curtains and insect screens, through the 6 Nm model to the powerful 20 Nm version, with tube diameters of 25 mm, 35 mm and 45 mm respectively.

For unlimited autonomy, the motor can be connected to an optional solar panel, allowing you to forget about recharging altogether.
