Vertical bidi

The Vertical Bidi motor provides advanced automation for vertical blinds, with a fully automatic electronic limit switch. It includes an RJ11 connector for control via a 5 V/12 V low-voltage push-button or reversing switch and for easy connection to home-automation controllers. It also enables precise control of opening, closing and the angle of the adjustable slats.

Automatic limit setting

Automatic
limit setting

Electronic limit switch

Electronic
limit switch

Bidirectional

Bidirectional

Radio receiver

Radio receiver

Rated torque
15 Nm
Speed
6 cm/s
Power supply
12 V DC
Rated power
8 W
Current
0.66 A
Operating time
6 min
Maximum number of rotations
∞
Protection rating
IP40
Length
275 mm
Maximum supported weight
10 kg
Control
Radio control
Limit switch adjustment
Automatic

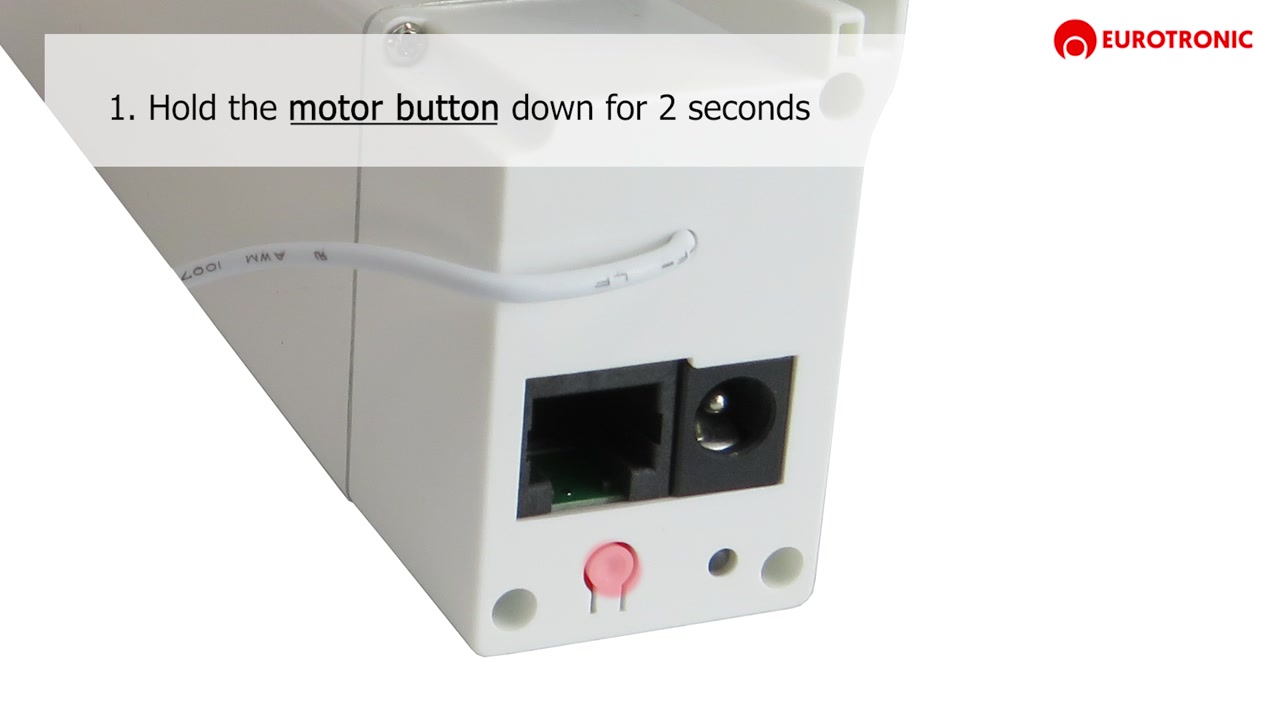

record vertical transmitter

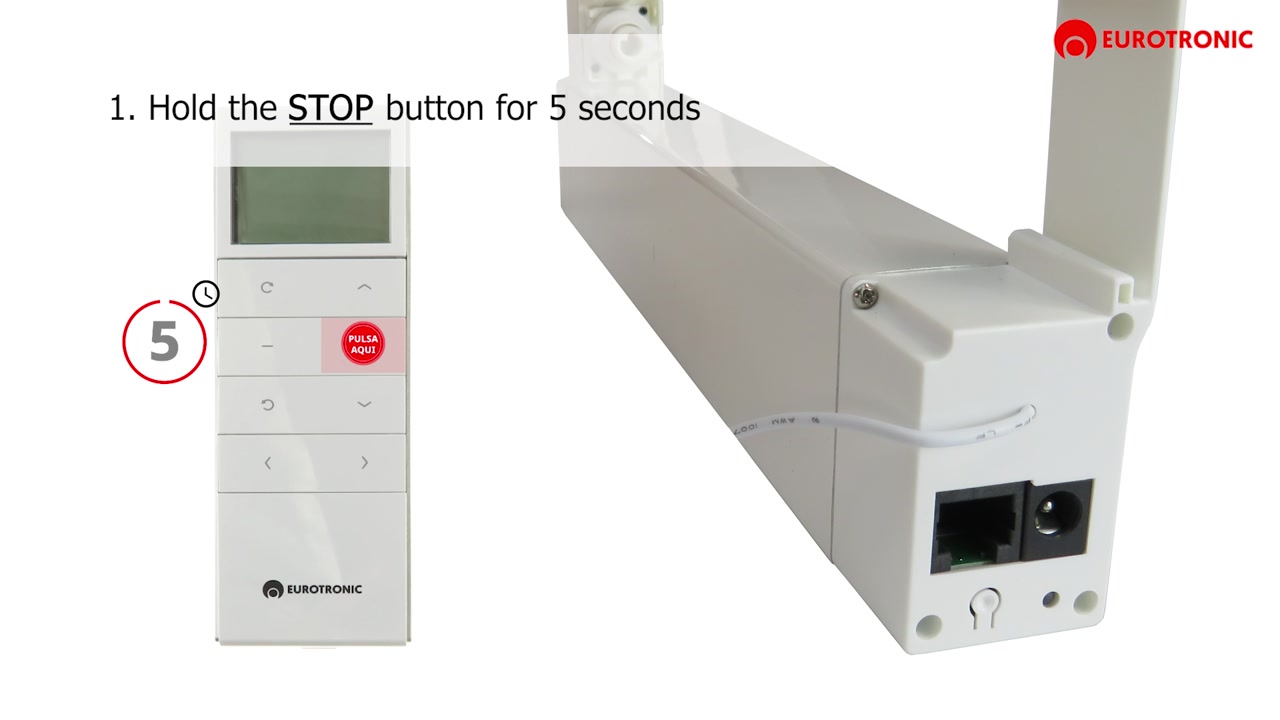

limit switch vertical

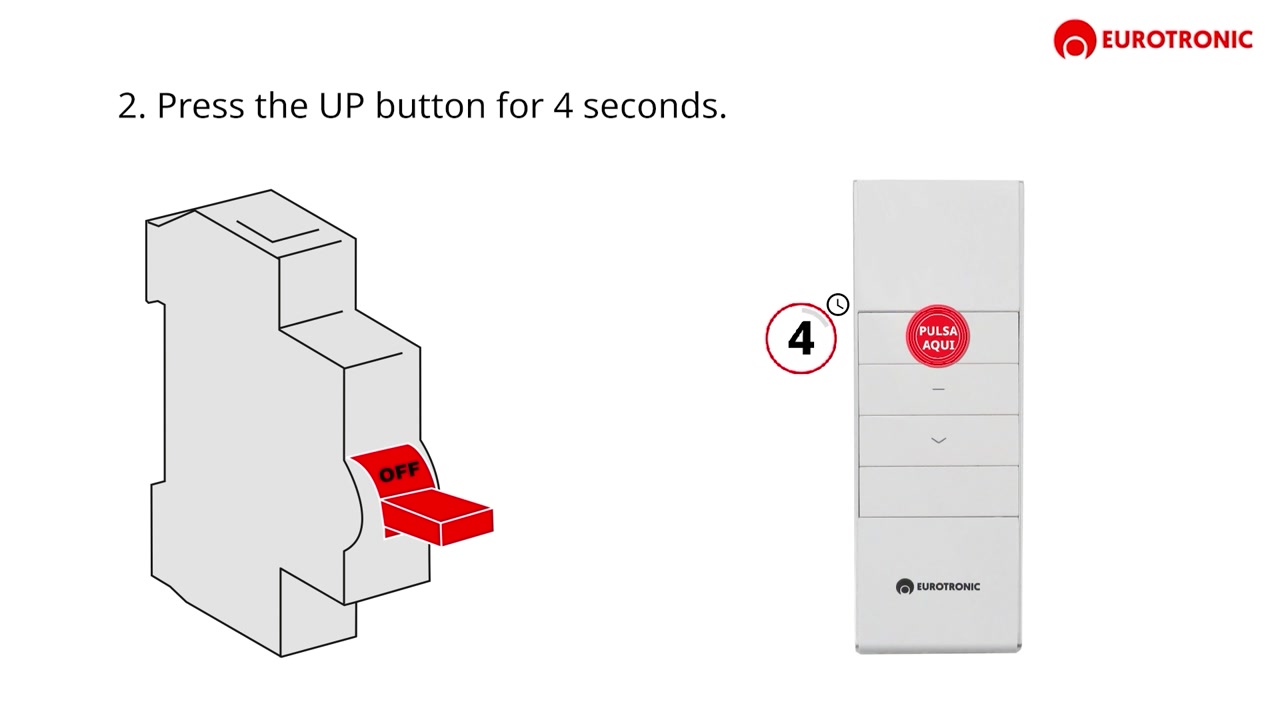

link a kik1 motor (unidirectional)

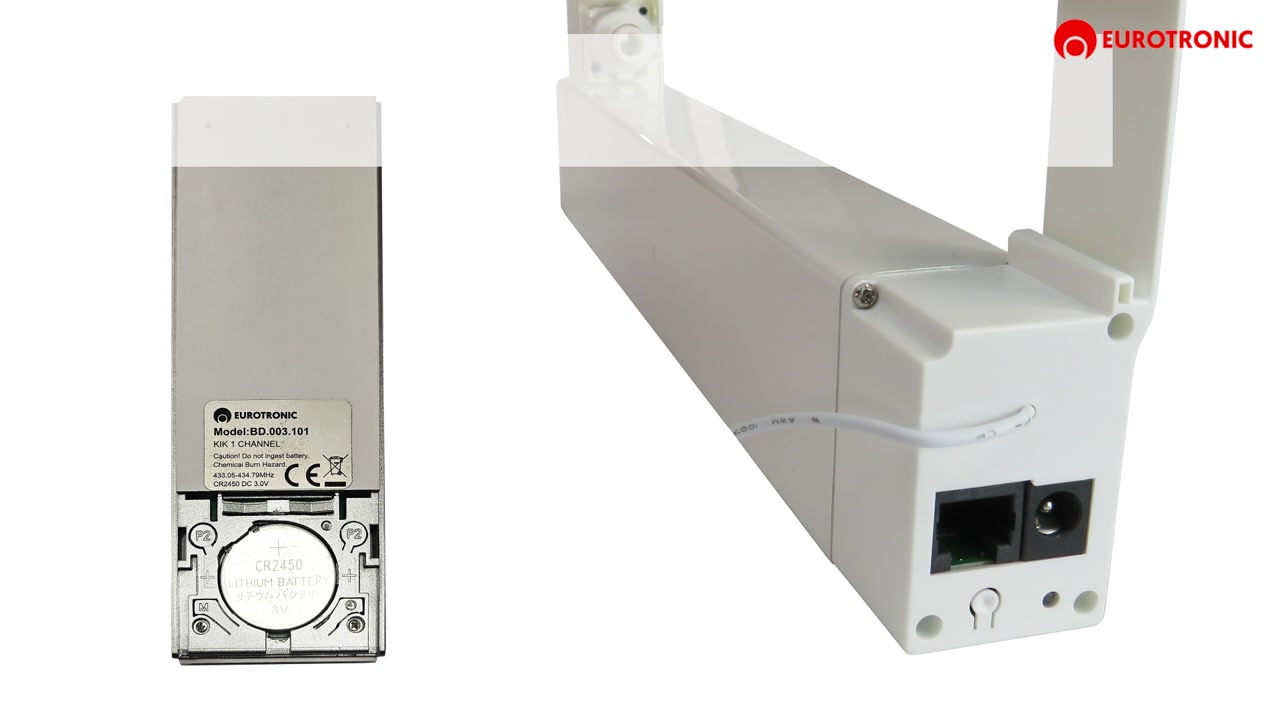

additional transmitter vertical

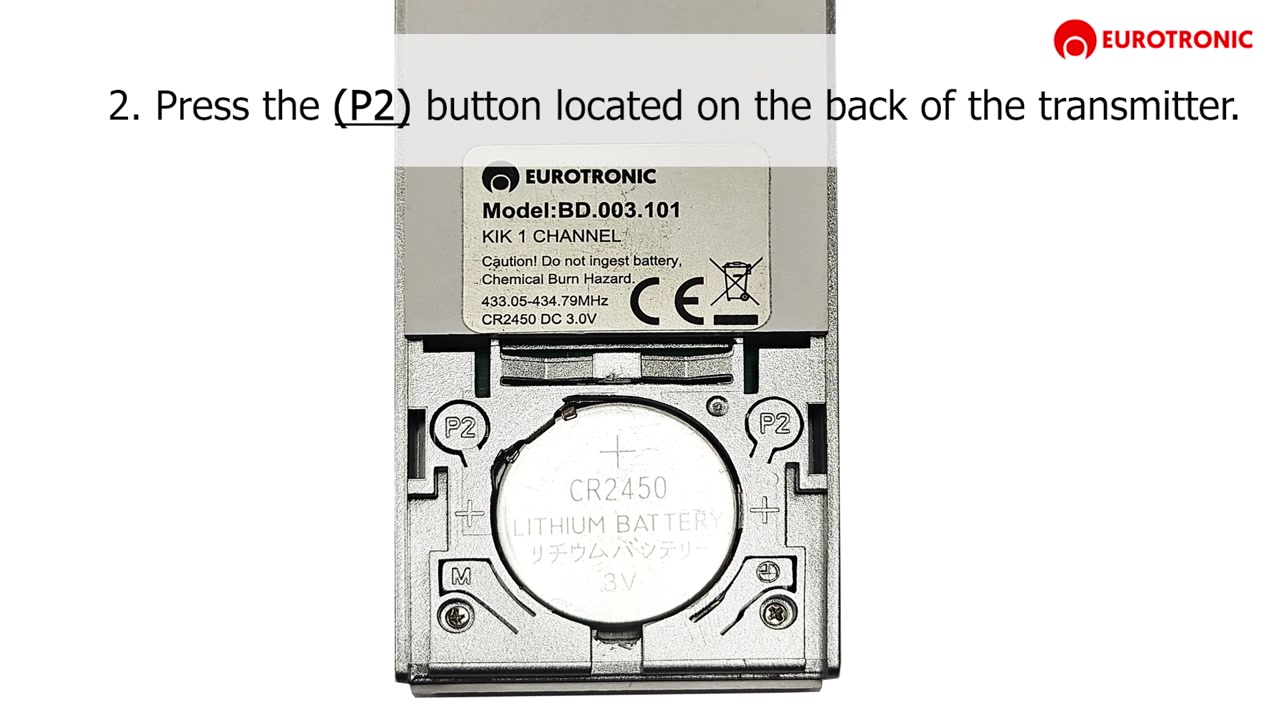

favorite position vertical
factory reset vertical

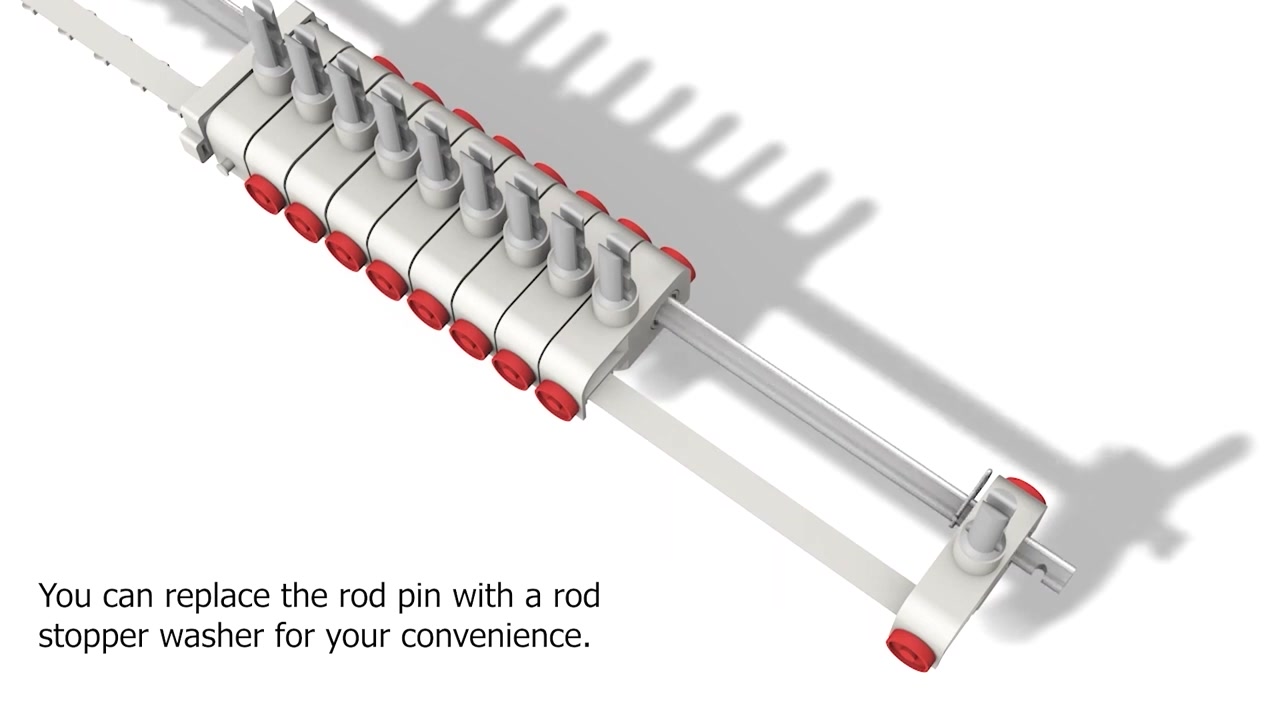

How to manufacture a motorized vertical bidi rail
Eurotronic VERTICAL BIDI motor

Take the automation of your
vertical blinds to the next
level with VERTICAL BIDI!

Precise, automatic travel adjustment for
greater durability and efficiency.

Bidirectional radio motor with a stable signal for control
without interference or interruptions.

We manufacture your motorised track to measure and deliver it with all
components fitted, ready to install and use.

VERTICAL BIDI for vertical slats

VERTICAL SLATS

  • Bidirectional radio motor with electronic and fully automatic limit switches.
  • Compatible with tracks up to 6 m long without losing speed.
  • All the materials required to build your made-to-measure track: rails, brackets and carriers.
  • Turnkey service: we supply the track cut, assembled and ready to mount on the wall or ceiling.
VERTICAL BIDI warranty and support

WARRANTY AND SUPPORT

Eurotronic offers a warranty of up to five years:

  • Manufactured from premium-quality materials for exceptional durability.
  • More than 10 years of experience in motor design, sales and manufacturing.
  • Spare parts and ongoing support throughout the motor’s service life.
  • Personalised assistance to resolve any issue or query.
VERTICAL BIDI automatic limit switches

No need to worry about adjustment
thanks to fully automatic
limit switches!
