Download manual Watch videos

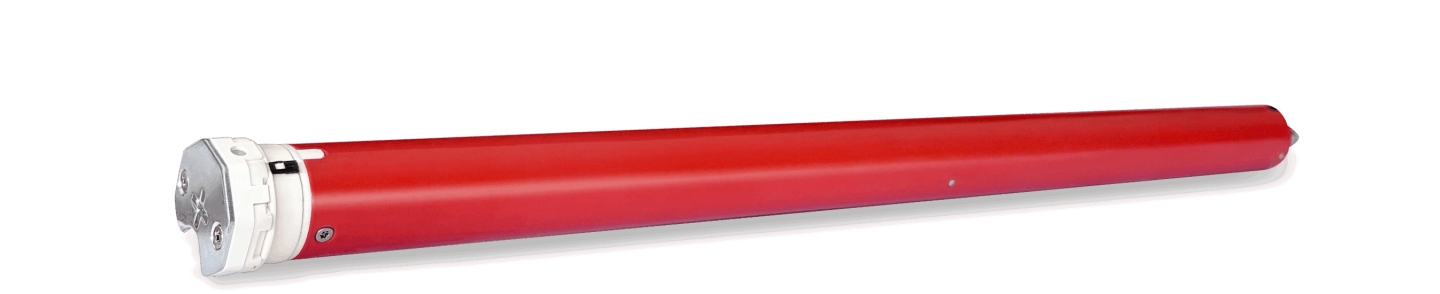

Sky bidi 10/17 Ø35 mm

Automate your roller shutters, curtains or awnings with SKY BIDI!
Bidirectional radio control and electronic limit switch.

Eurotronic SKY BIDI motor
SKY BIDI obstacle detection

OBSTACLE DETECTION

En sus modelos de 20, 30 and 50 Nm models, SKY BIDI includes:

  • Automatic obstacle detection, protecting both the motor and the installation.
  • Output for a wired switch, providing greater control flexibility.
More powerful SKY BIDI

MORE POWER

The 80, 100 and 120 Nm versions, designed for larger and heavier awnings, include:

  • Configurable pressure-closing function, ideal for cassette awnings that require a firm closing adjustment.
  • Quiet and precise operation, even on large awnings.
SKY BIDI suitable for 35, 45 and 59 mm tubes

Suitable for tubes of:
Ø35 mm
Ø45 mm
Ø59 mm

Rated torque
10 Nm
Speed
17 rpm
Power supply
230 V 50 Hz
Rated power
144 W
Current
0.63 A
Protection rating
IP44

Link first transmitter blind
Change of direction
Programar final de carrera inferior
Program upper limit switch for UP shutter
Program upper limit switch
Añadir o quitar POSICION FAVORITA persiana
Modify lowering limit switch blind
Modify the upper limit switch blind
Enable disable step by step movement blind
Link or delete an additional transmitter blind
Delete all transmitters

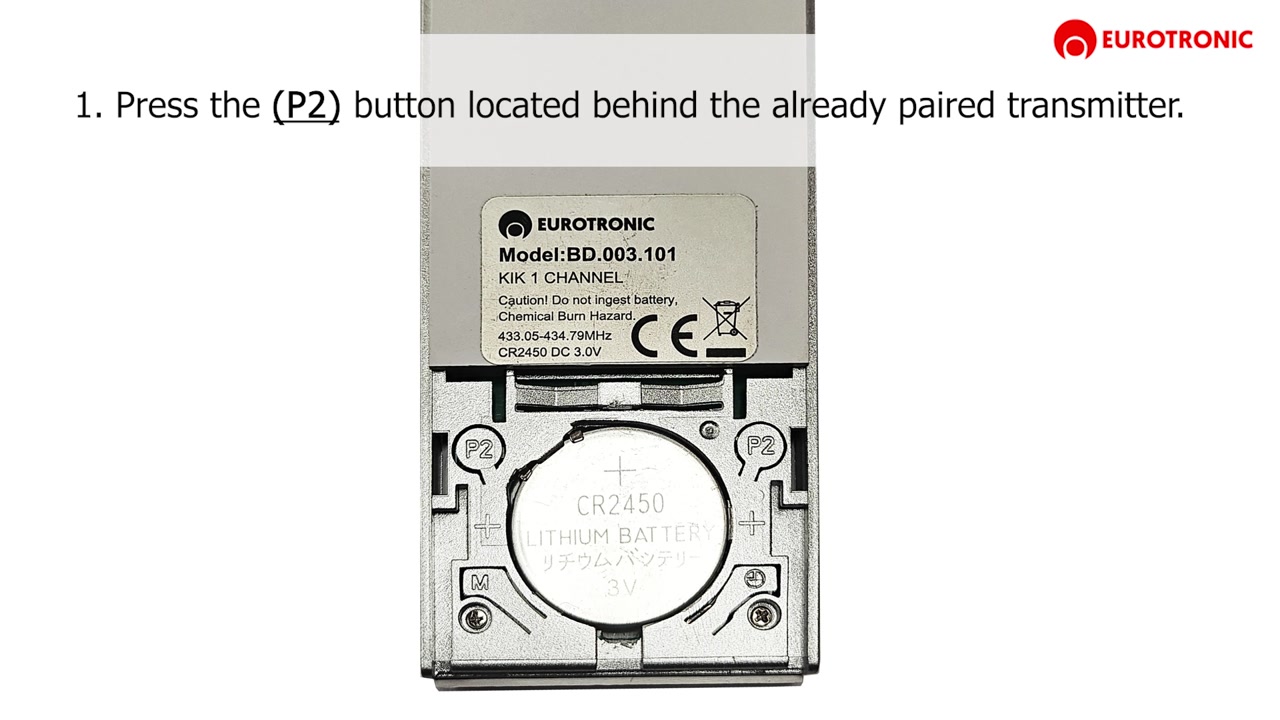

Delete all end positions

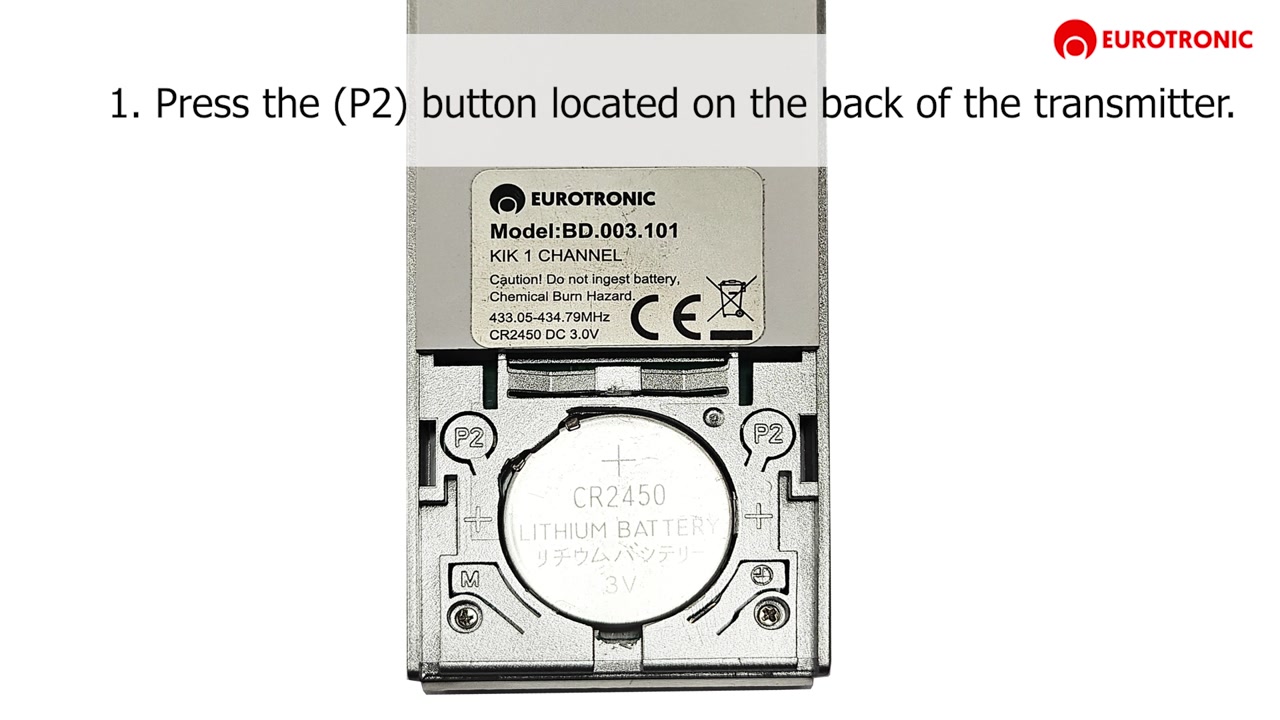

Activate or deactivate obstacle stop and blind rebound function

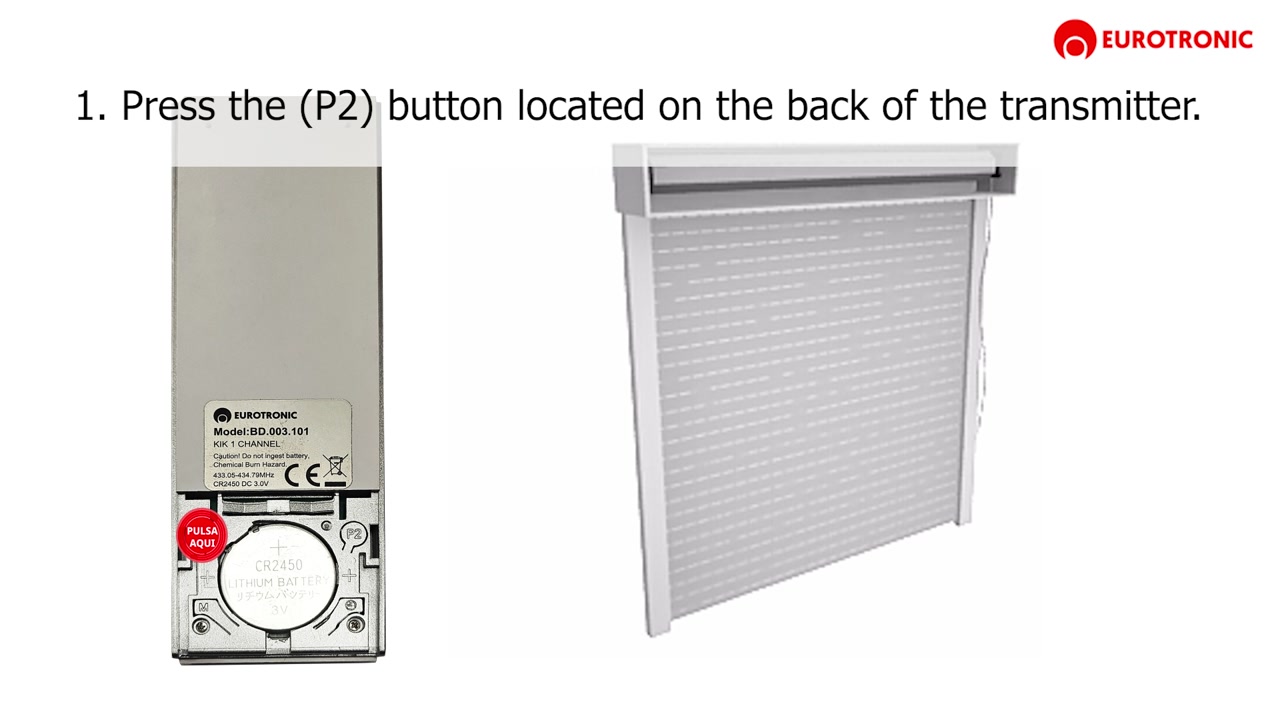

Change mode obstacle stop blind

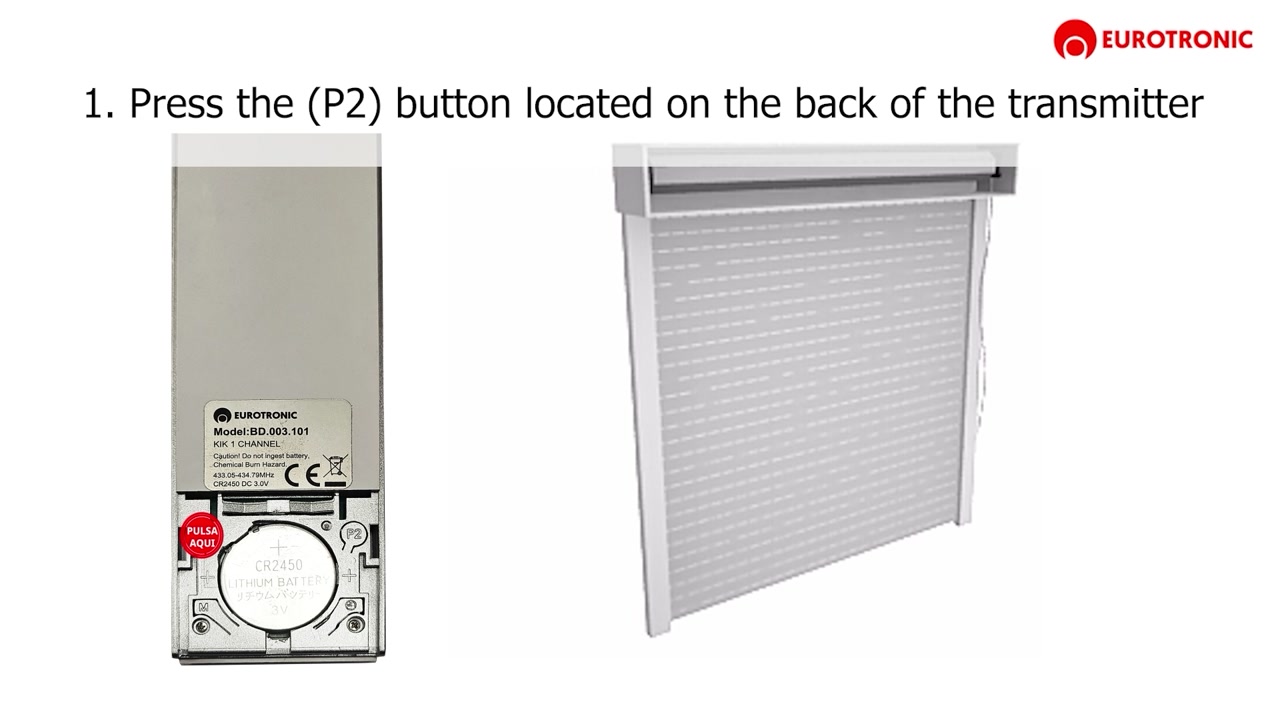

Changing the sensitivity of obstacle stop blind
Radio signal repeater function blind
