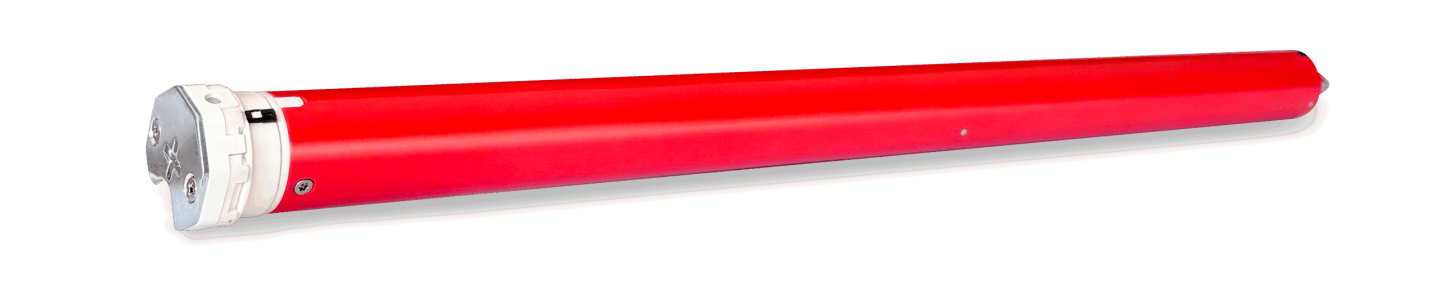

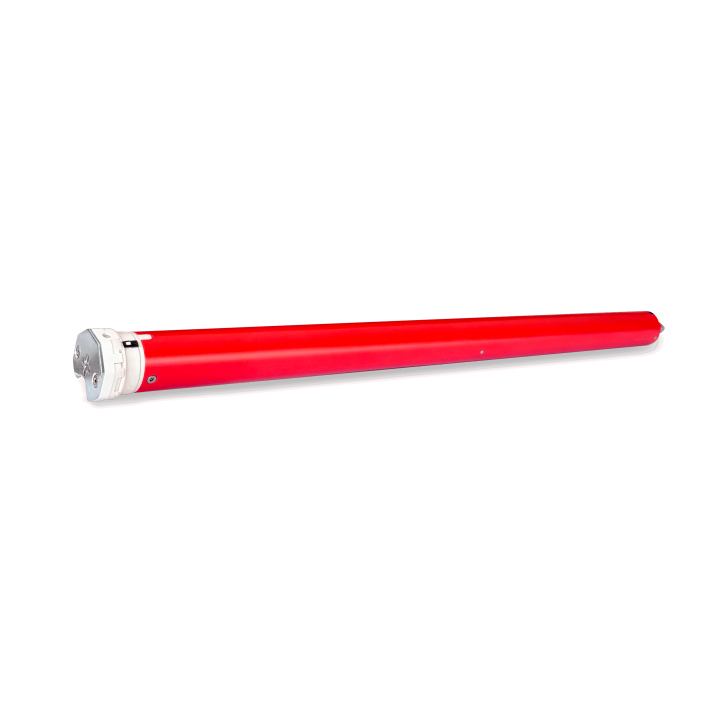

Battery bidi 6/24 Ø35 mm

Enjoy the freedom of a smart home with the Battery BIDI motor. Its integrated battery provides an impressive operating time of up to 12 months, enabling a clean, cable-free installation. Control your curtains or roller shutters remotely with its bidirectional radio receiver. The quality and convenience you expect, now with an exceptionally easy and hassle-free installation.

Built-in battery

Built-in battery

Electronic limit switch

Electronic
limit switch

Bidirectional

Bidirectional

Radio receiver

Radio receiver

Solar-panel compatible

Solar-panel compatible

Rated torque
6 Nm
Speed
24 rpm
Power supply
5 V DC
Rated power
38 W
Current
3.23 A
Operating time
6 min
Maximum number of rotations
Protection rating
IP20
Length
695 mm
Control
Radio control
Limit switch adjustment
By remote control
Battery
Yes

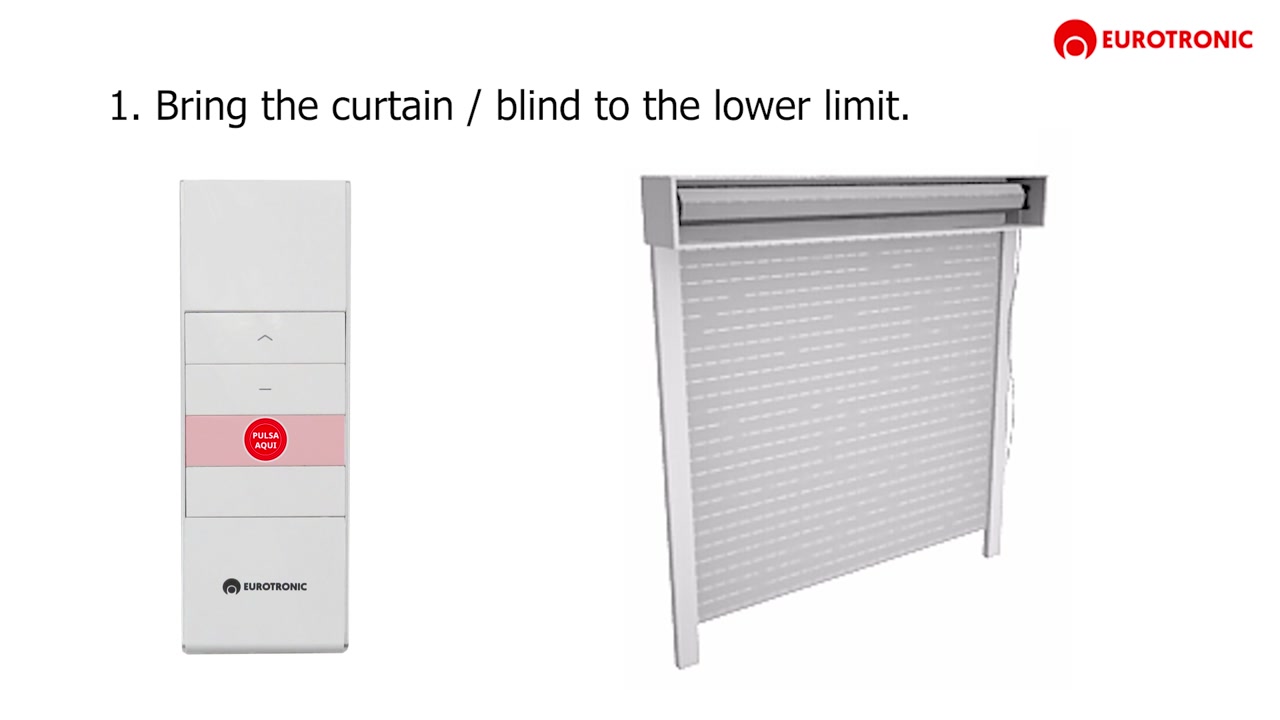

Activate or deactivate the blind load indicator

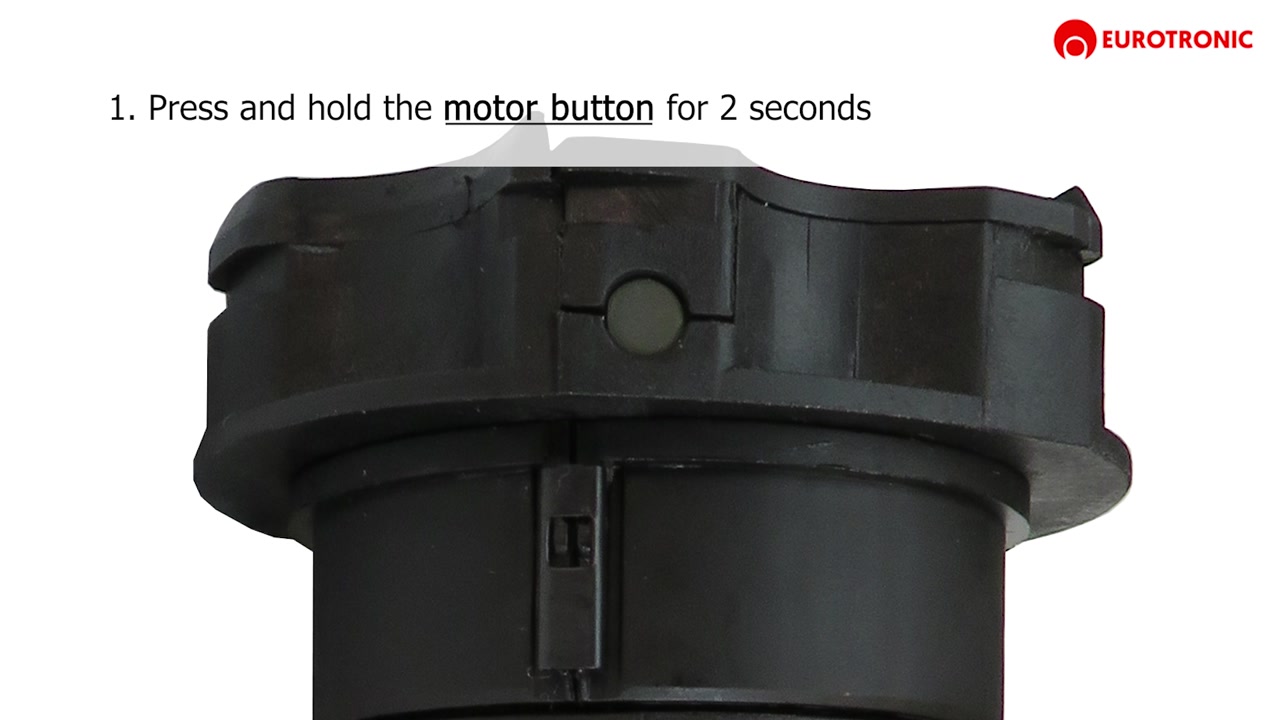

Record first transmitter from the motor head battery blind

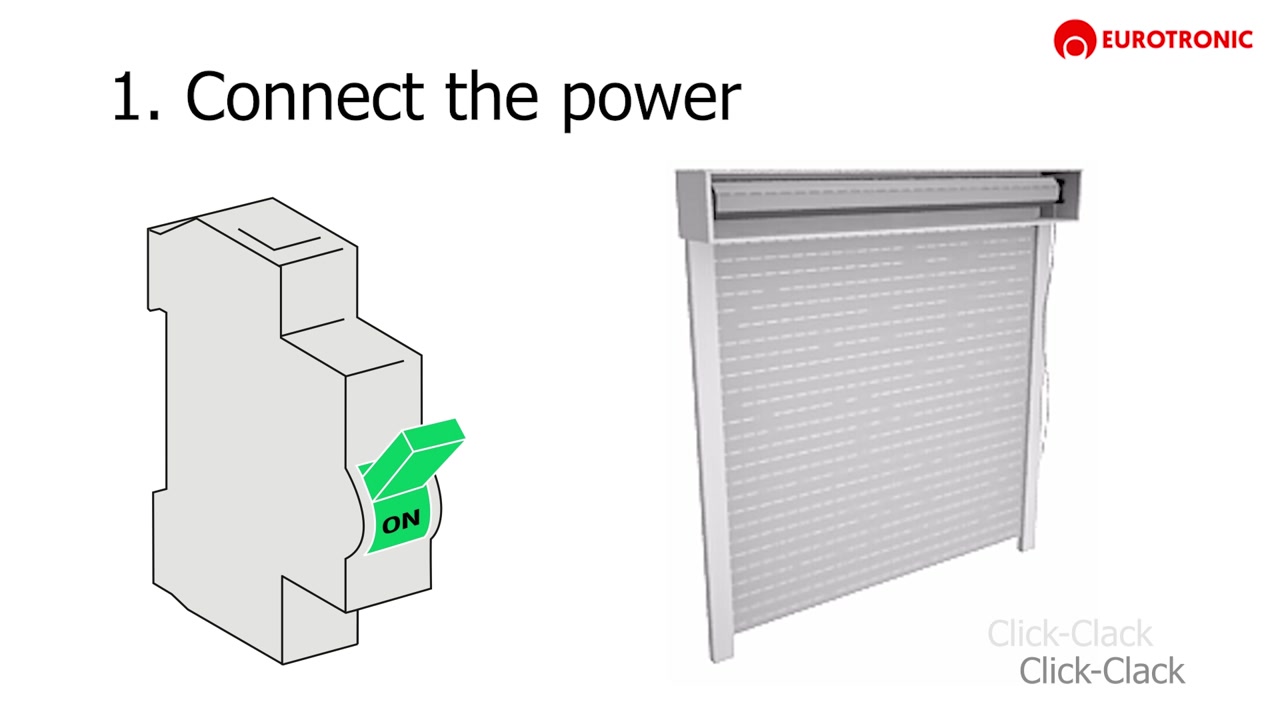

Link first transmitter blind
Change of direction
Programar final de carrera inferior

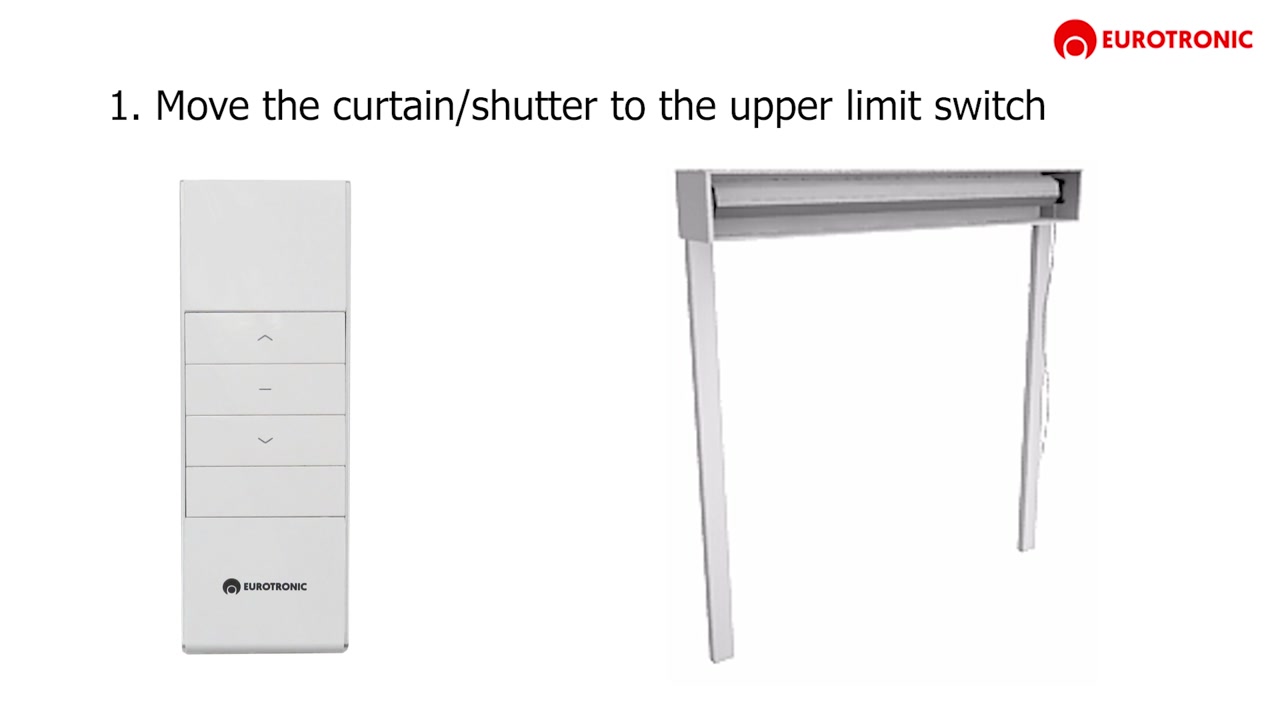

Program upper limit switch for UP shutter

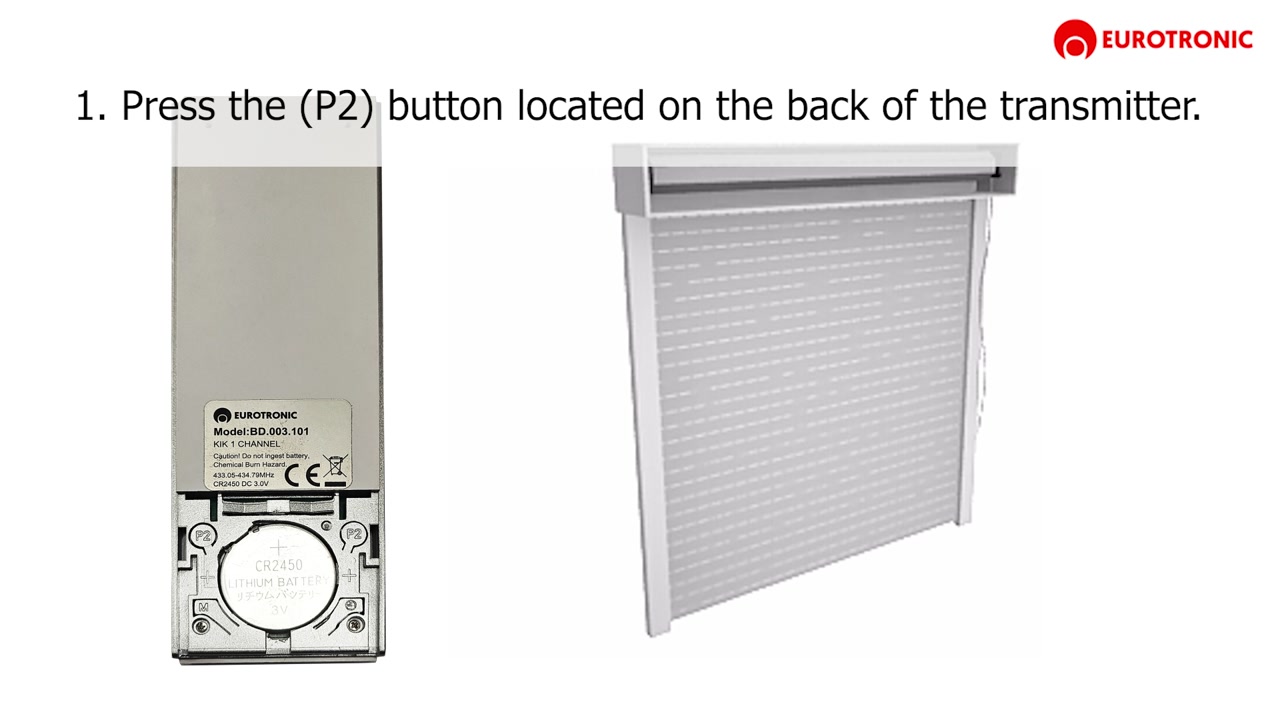

Enable disable step by step movement blind
Añadir o quitar POSICION FAVORITA persiana

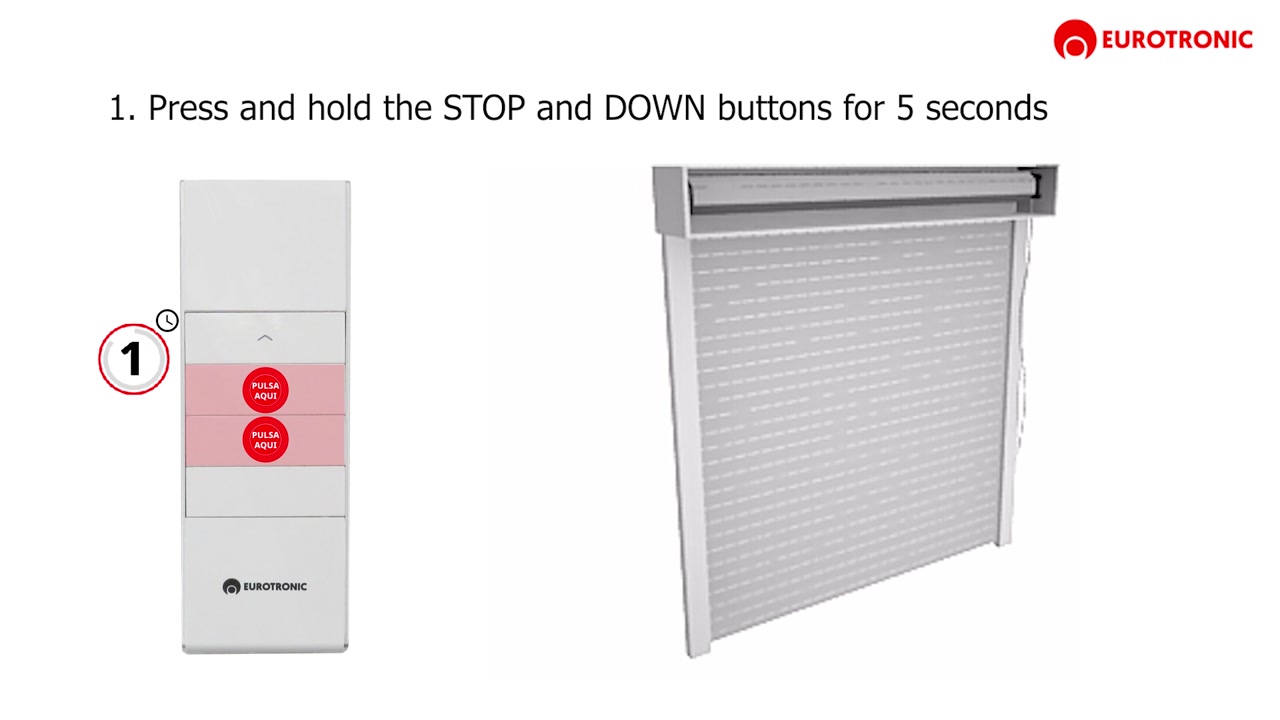

Modify lowering limit switch blind

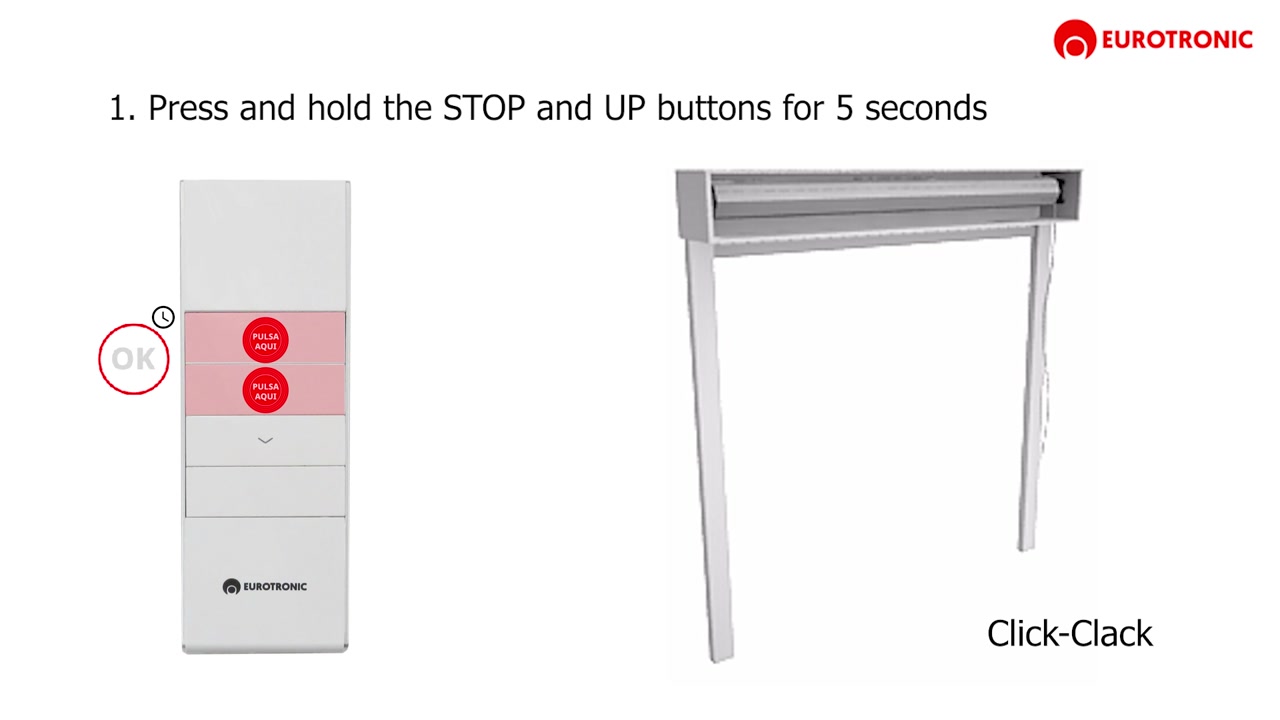

Modify the upper limit switch blind

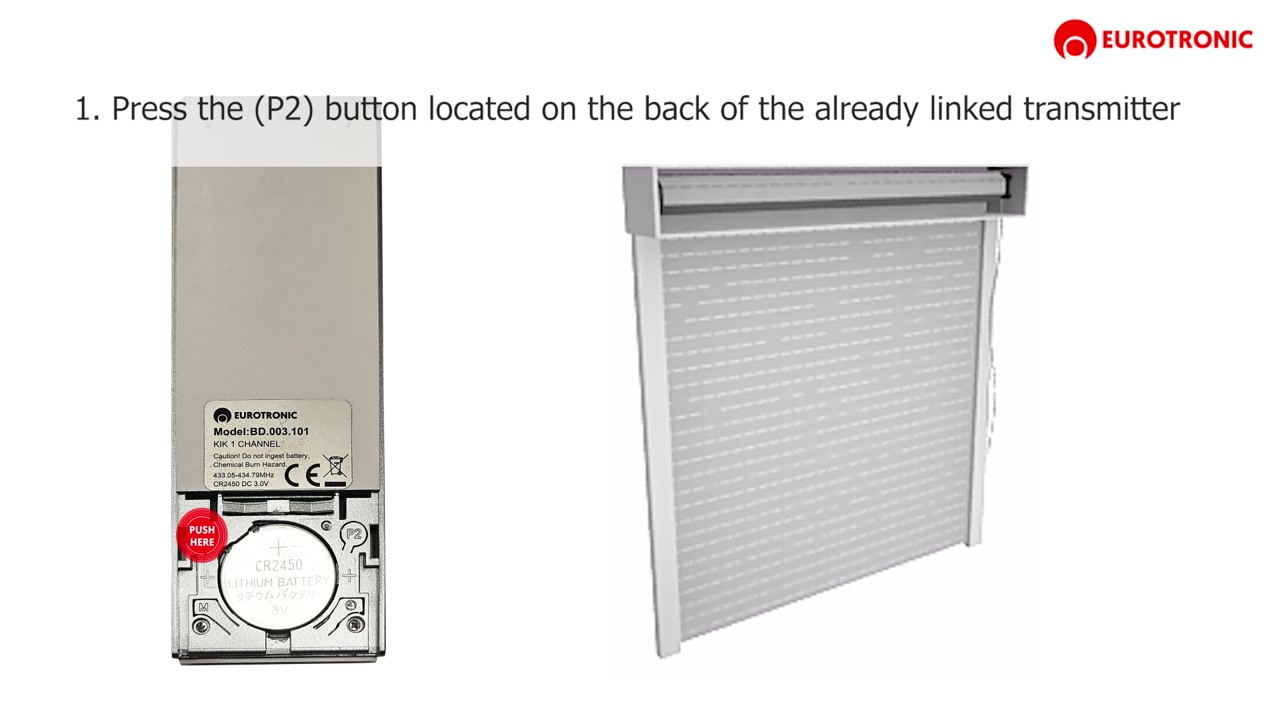

Link or delete an additional transmitter blind

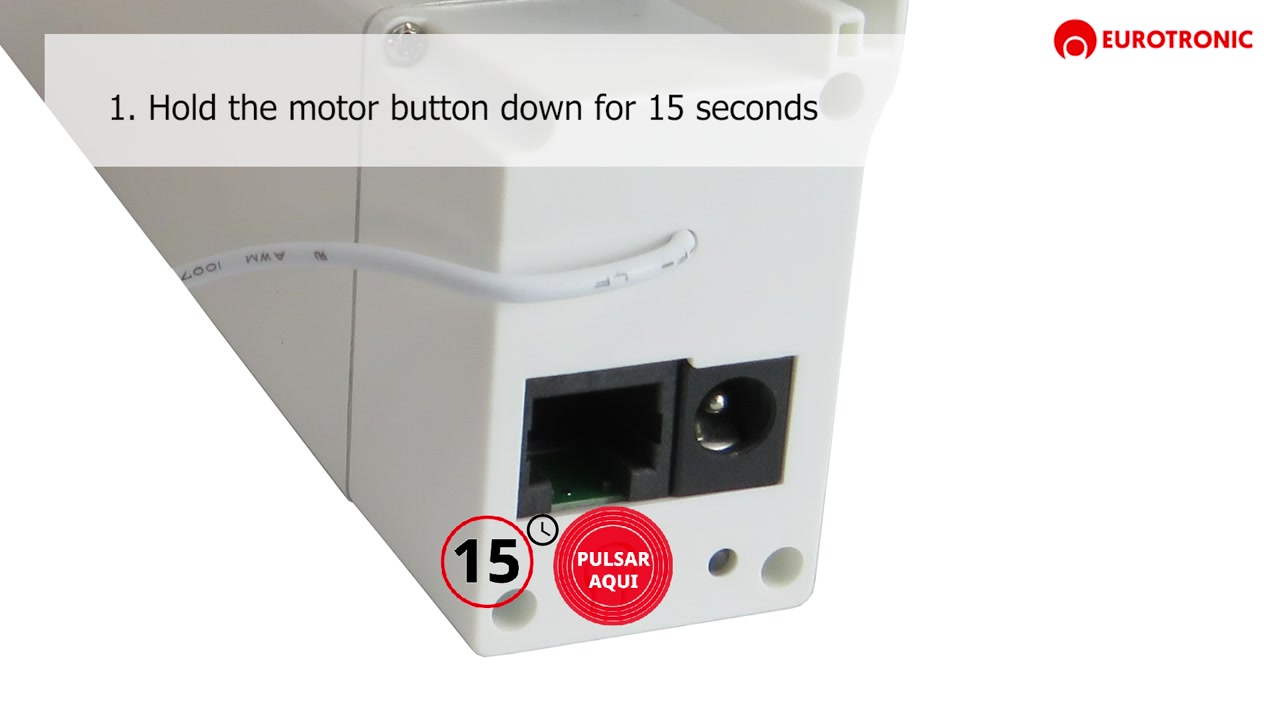

factory reset vertical

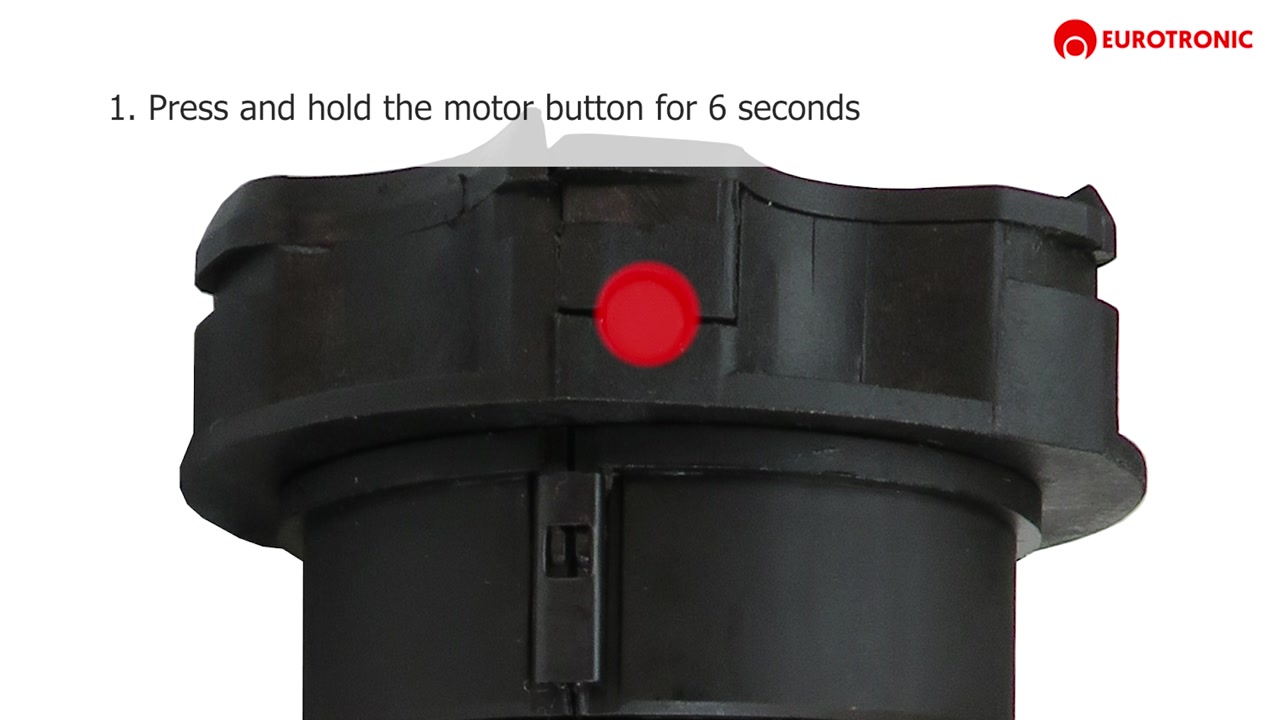

Radio lock mode battery blind

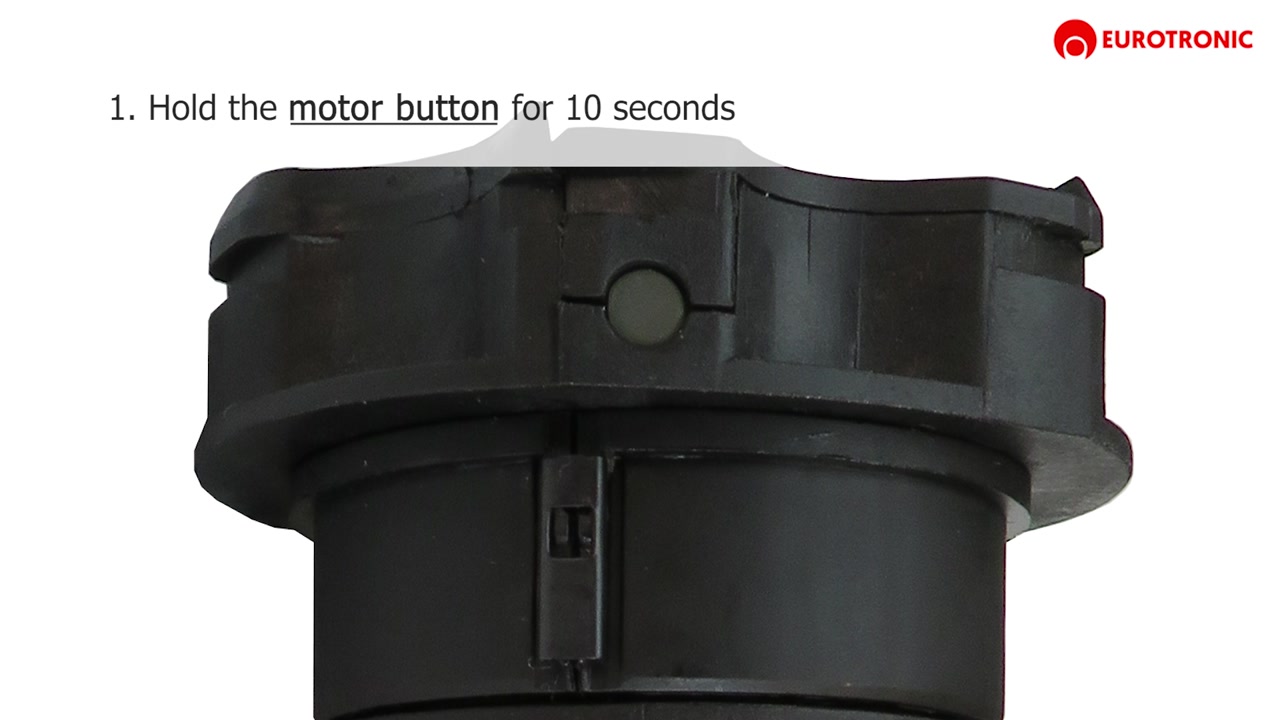

Change rotation from the motor battery

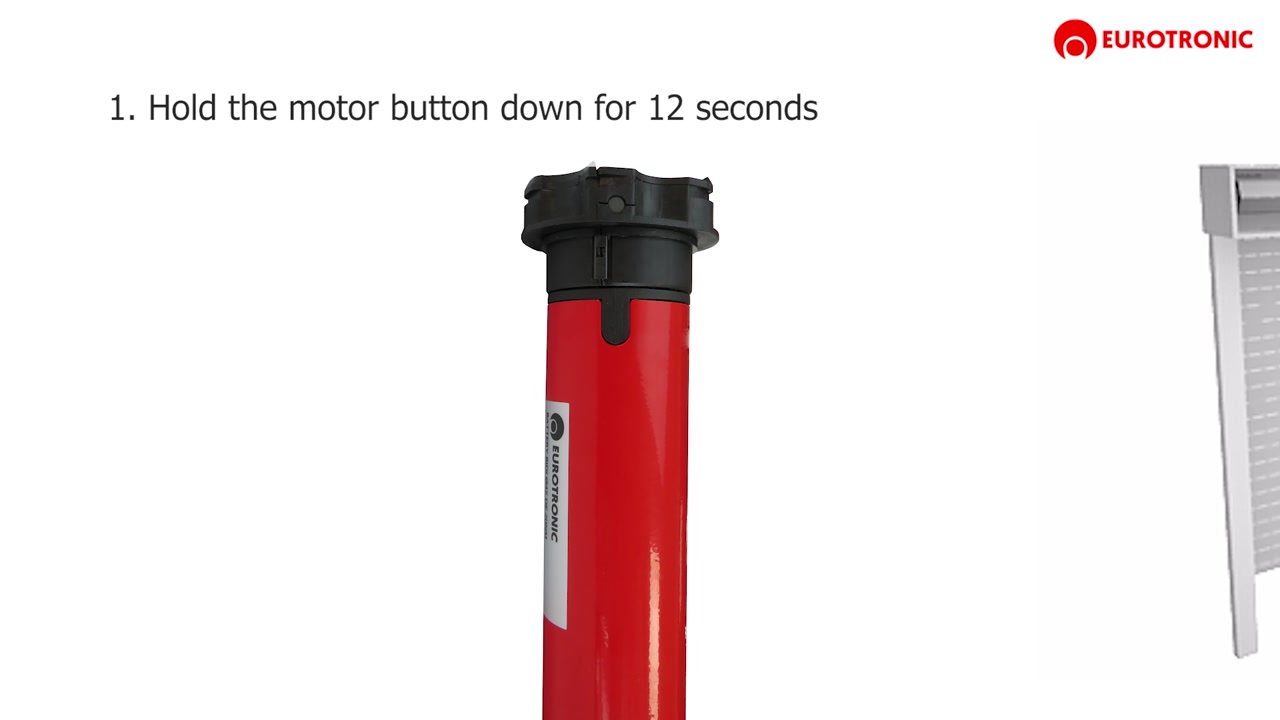

Factory reset battery

Forget the cables
with Battery BIDI!

No-building-work installation,
up to 12 months of battery life
and bidirectional radio control.

Eurotronic Battery BIDI motor
Long-lasting Battery BIDI battery

LONG-LASTING BATTERY

Enjoy a truly straightforward installation with no building work or cables thanks to the Battery BIDI motor with integrated battery.

This innovative feature removes the need to run cables, allowing curtains to be motorised in existing installations regardless of the availability of power sockets.

Battery life is also remarkable: with daily use, the motor can operate autonomously for up to 12 months. That means fewer recharges and greater everyday convenience.

Maximum Battery BIDI reliability

MAXIMUM RELIABILITY

Battery BIDI: high-end technology backed by the Eurotronic guarantee.

The Battery BIDI motor embodies the quality and reliability that distinguish the entire Eurotronic tubular motor range. It includes a radio receiver with a bidirectional protocol.

Electronic limit-switch adjustment makes setting the motor travel quick and easy, directly from the remote control, without having to physically access the motor head. This simplifies installation and speeds up commissioning and maintenance.

Battery BIDI solution for every need

A SOLUTION FOR EVERY NEED

The Battery BIDI motor adapts to a wide variety of curtains and shutters thanks to three available torque ratings: from the 1.2 Nm model, ideal for lightweight curtains and insect screens, through the 6 Nm model to the powerful 20 Nm version, with tube diameters of 25 mm, 35 mm and 45 mm respectively.

For unlimited autonomy, the motor can be connected to an optional solar panel, allowing you to forget about recharging altogether.
