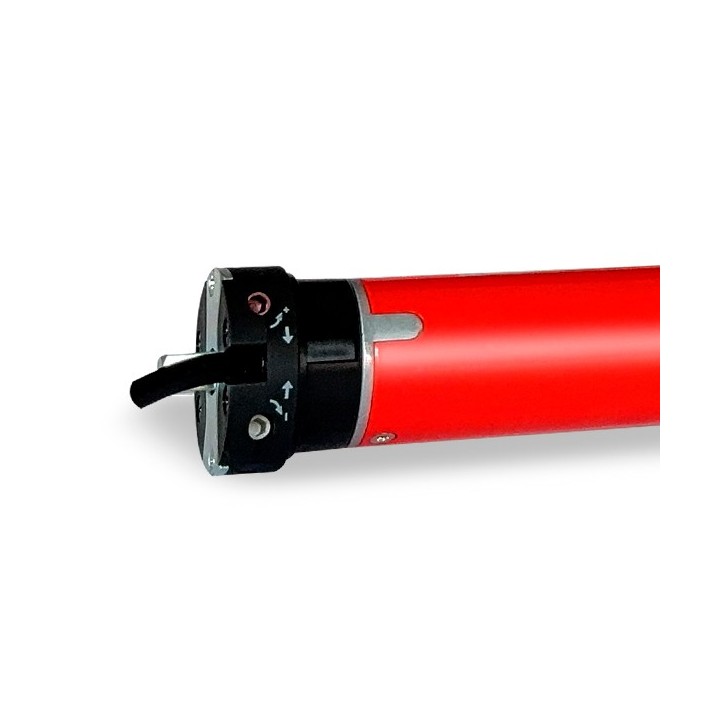

50 Nm 12 V DC mechanical motor

Ø45 mm tubular motor, 50 Nm, 12 rpm, powered by 12 V DC.

Rated torque
50 Nm
Speed
12 rpm
Power supply
12 V DC
Rated power
142 W
Current
11.8 A
Protection rating
IP44

50 Nm mechanical tubular motor designed for installations powered by an external 12 V battery. It operates at 12 rpm, has an IP44 protection rating and can be combined with the bidirectional battery and solar panel of the Battery Bidi 50 Nm system.
