Tronic 6/28 Ø35 mm

Tronic is our most straightforward motor, designed for users looking for a simple and reliable solution. It features a mechanical limit switch and a connection for a wired switch. Despite its simplicity, it stands out for its quality and strength: a virtually indestructible motor, ideal for installations where reliability and durability come first.

Mechanical limit switch

Mechanical
limit switch

Connection to push-button/reversing switch

Connection to
push-button/reversing switch

Rated torque
6 Nm
Speed
28 rpm
Power supply
230 V 50 Hz
Rated power
121 W
Current
0.53 A
Operating time
4 min
Maximum number of rotations
30
Protection rating
IP44
Length
445 mm
Maximum supported weight
10 kg
Control
Push button / reversing switch
Limit switch adjustment
Manual operation by crank rod

Forget motor problems with TRONIC: extreme reliability, guaranteed quality and five years of complete peace of mind!

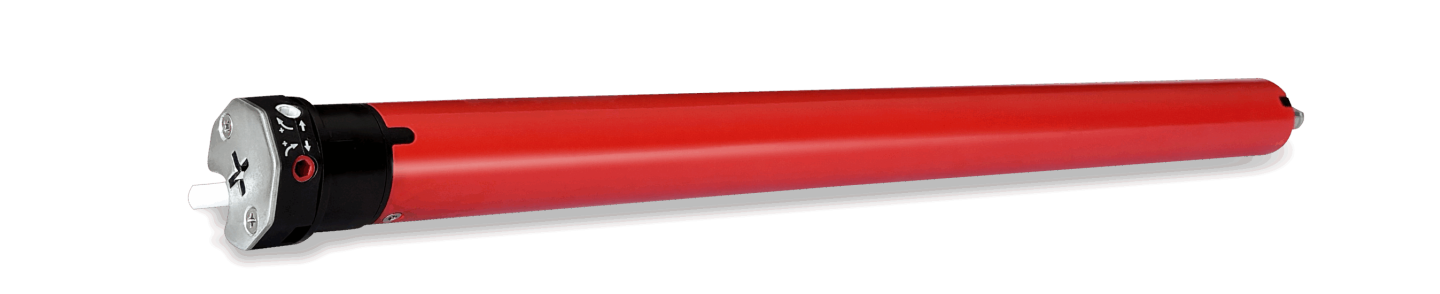

Eurotronic TRONIC motor
Mechanical limit switches of the TRONIC motor

Mechanical limit switches

TRONIC mechanical limit switches do not rely on sensors or transmitters: their simplicity is their greatest strength, providing lasting precision even under the most demanding conditions.

TRONIC motor compatible with the Maiki Bidi receiver

Expand its capabilities with Maiki Bidi

TRONIC can be converted into a remote-controlled motor simply by adding the Maiki receiver, adapting it to more modern requirements without compromising its reliability.
